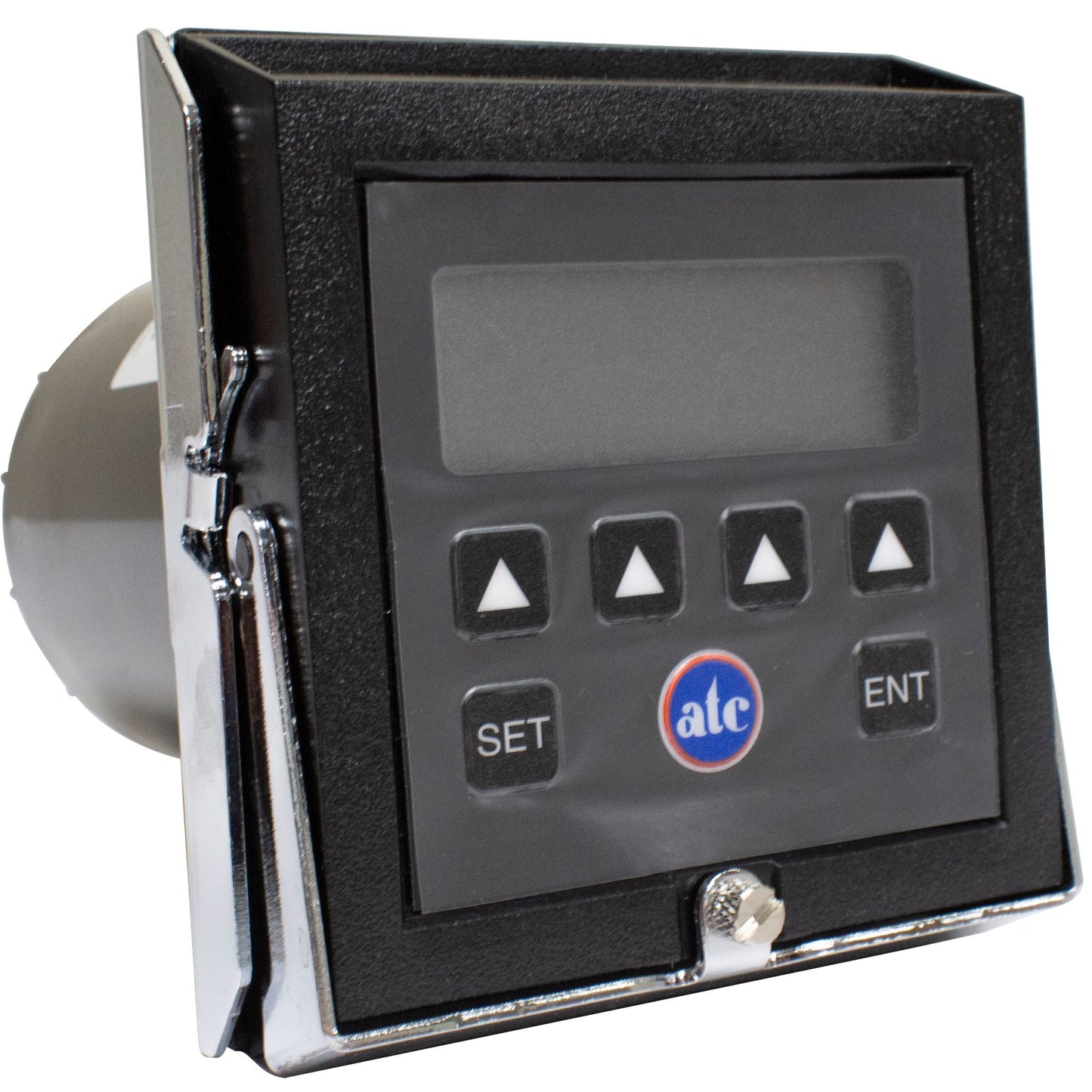

ATC 655 Series Panel-Mounted Digital Timer — 655-8-4000, 120V AC

The ATC 655 Series is a panel-mounted digital timer designed to retrofit many round-case electromechanical timers. Model 655-8-4000 operates on 120V AC and uses EEPROM data retention.

Manufacturer part number: 655-8-4000
Timing modes: ON-delay or reverse-start delay
Timing range: 0.001 second to 199 hours, 59 minutes
Time ranges: Five
Mounting: Plug-in panel mount
Connection: Screw terminals
Contacts: 2 normally open and 2 normally closed
Faceplate: Sealed

Replaces ATC 655-8-2000 as the manufacturer-designated fit, form, and function EEPROM model. Confirm the complete part number and 120V AC configuration before ordering.
