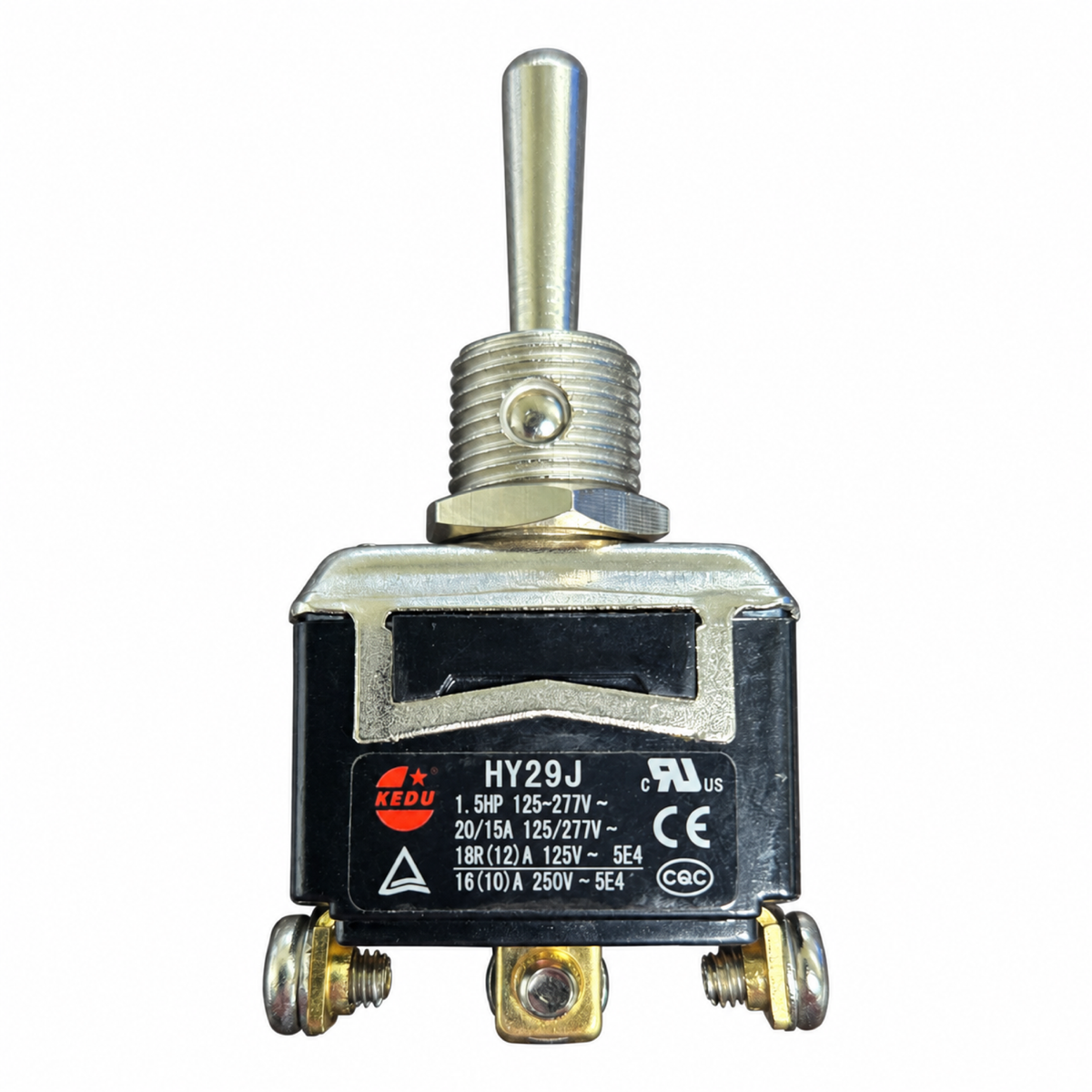

Lift Table Toggle Switch — KEDU HY29J, Momentary (ON)-OFF-(ON)

Replacement momentary toggle switch for lift tables. The spring-return lever returns to center after it is released, providing temporary up/down control.

• Manufacturer: KEDU
• Model: HY29J
• Switch configuration: SPDT
• Positions: 3
• Function: Momentary (ON)-OFF-(ON)
• Connections: 3 screw terminals
• Mounting stem: M12 × 1
• Panel mounting hole: 1/2 in.
• Motor rating: 1.5 hp at 125–277 VAC
• Contact ratings: 20 A at 125 VAC; 15 A at 277 VAC; 18 A resistive at 125 VAC; 16 A at 250 VAC

Compatible with lift-table models BL-25M, BL-25MHD, BL-25MHDW, BL-30M, and BL-30MW. Sold as the replacement switch only. Customer installation is required.
