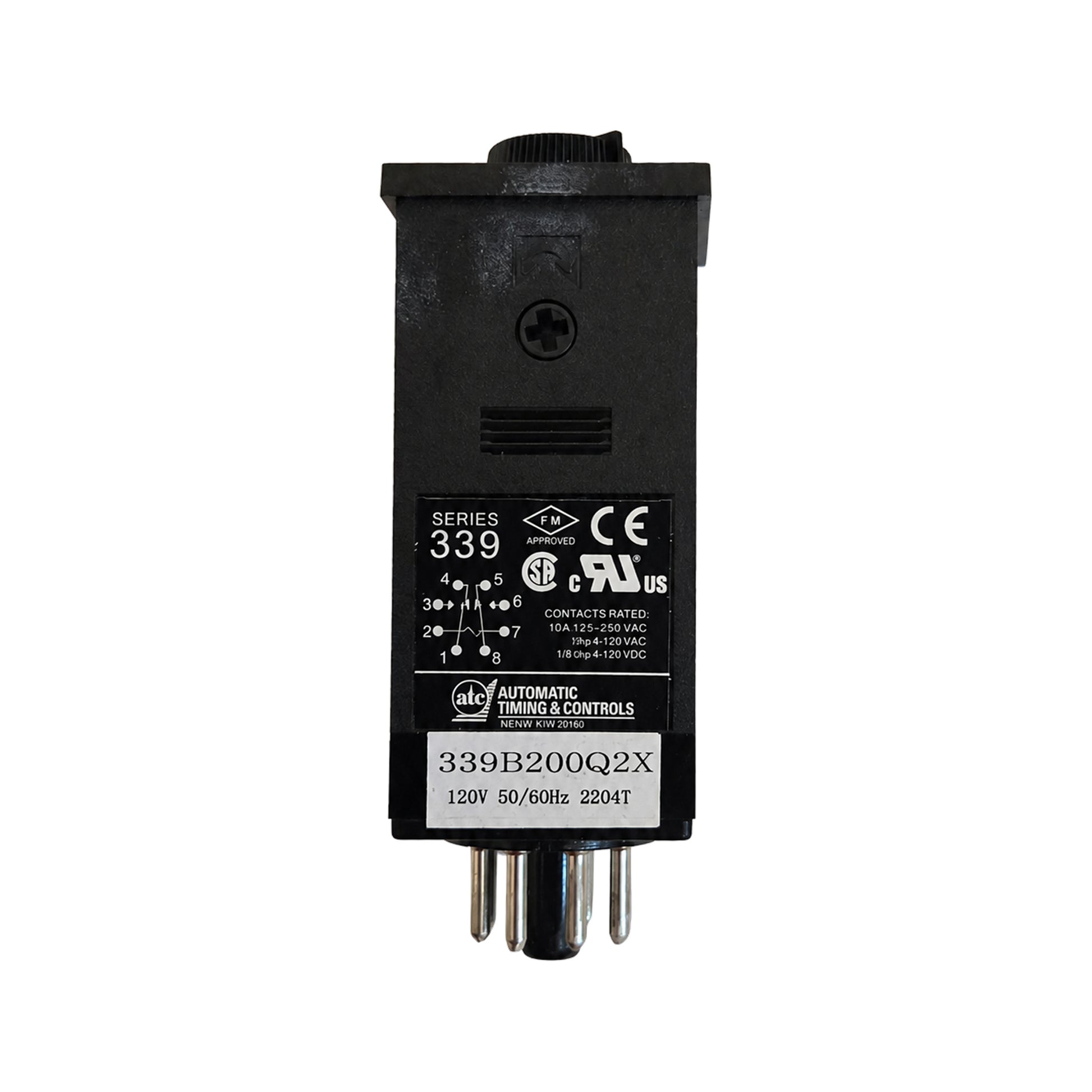

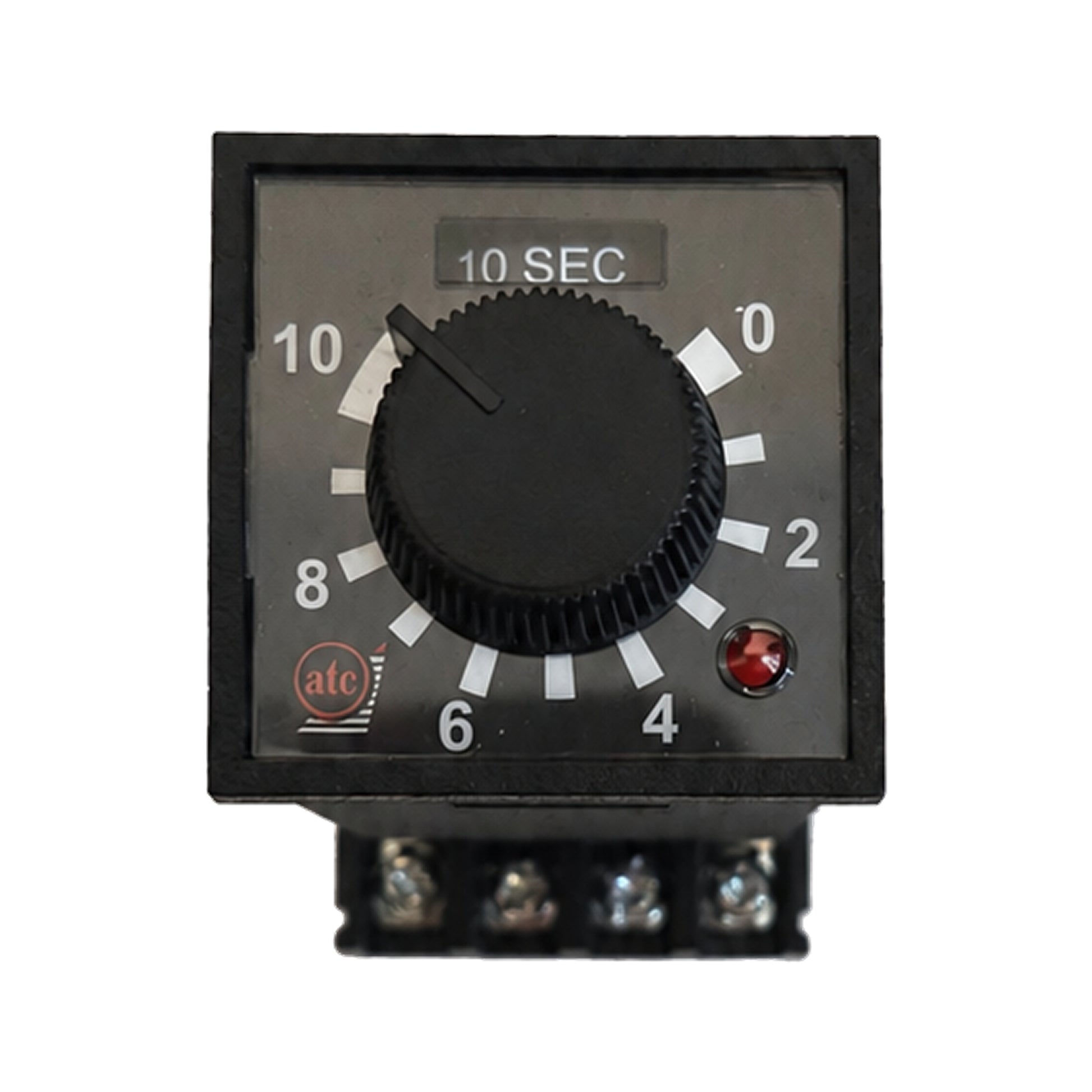

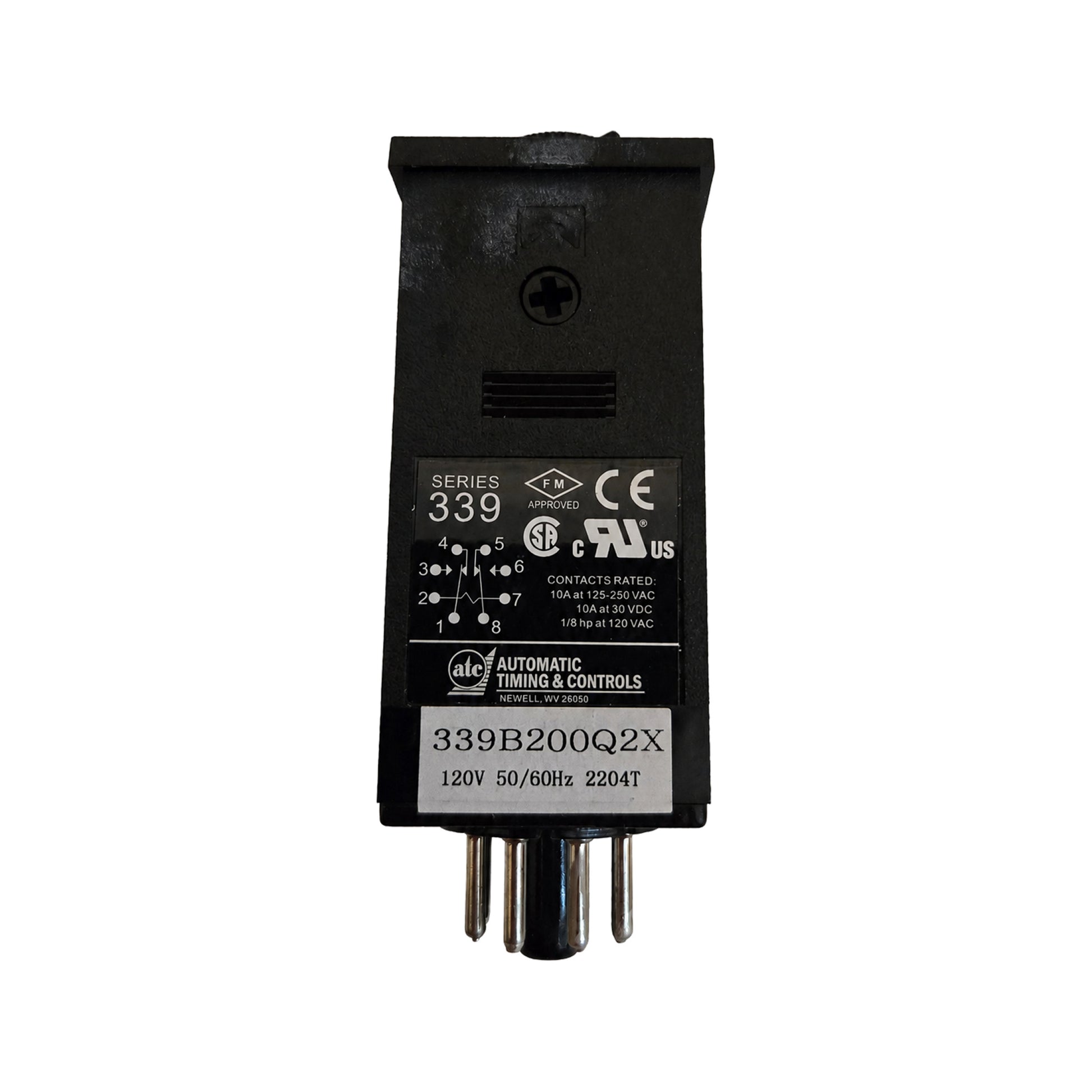

ATC 339B Time Delay Relay — 8-Pin, 120 VAC (339B200Q2X)

The ATC 339B200Q2X (339B-200-Q-2-X) is an adjustable solid-state time-delay relay with selectable on-delay or interval operation. It uses an 8-pin octal plug-in base and operates on 120 VAC, 50/60 Hz.

• Six dial-selected ranges: 1 or 10 seconds, minutes, or hours
• Timing modes: selectable on-delay or interval
• Output: DPDT contacts rated 10 A resistive at 30 VDC or 250 VAC
• Operating temperature: 0 to 140°F (-17 to 60°C)
• Manufacturer part number: 339B200Q2X / 339B-200-Q-2-X

Confirm the complete manufacturer part number and that your installation uses a compatible 8-pin octal socket before ordering. Contact NCIS if you would like help reviewing the part number.
